End Effectors And Machine Vision Systems

Vision Systems

Vision systems are a critical element of automation in the modern factory.

Brillopak has developed its own camera independent vision software CIVS TM that forms the basis for our vision products. We have developed 2 new products which serve to improve our customers quality of product and protect their reputation.

QoPR™ is our new Pick and Reject Quality control system for high speed food processing production lines.

Developed alongside the British Government Agency, the Manufacturing Technology Centre, our own camera independent software is integrated with both 3D laser vision and 2D colour resolution.

The patent pending system automatically identifies imperfect products and contaminants in products moving along the production line at up to 800 pieces a minute. All products are scanned and any reject products removed from the line by either a delta type or articulated robot with a specialised end effector. The system can work 24/7 and can be removed from the line for high care cleaning.

Out of specification product identified and removed includes mishapen, overlaps, touching and mounted products
Contaminants include Discolouration, missing additives, and coloured contaminants.
Mishapes for reworking and contaminants are automatically placed in separate bins.

Typically, we suggest using vision with non-uniform products or those packaged in bags because of the associated problems with pack orientation. With the aid of vision, the centre of the pack and its angle to the centre line of the conveyor can be identified. This informs the way the product is picked and placed to match the desired pattern.

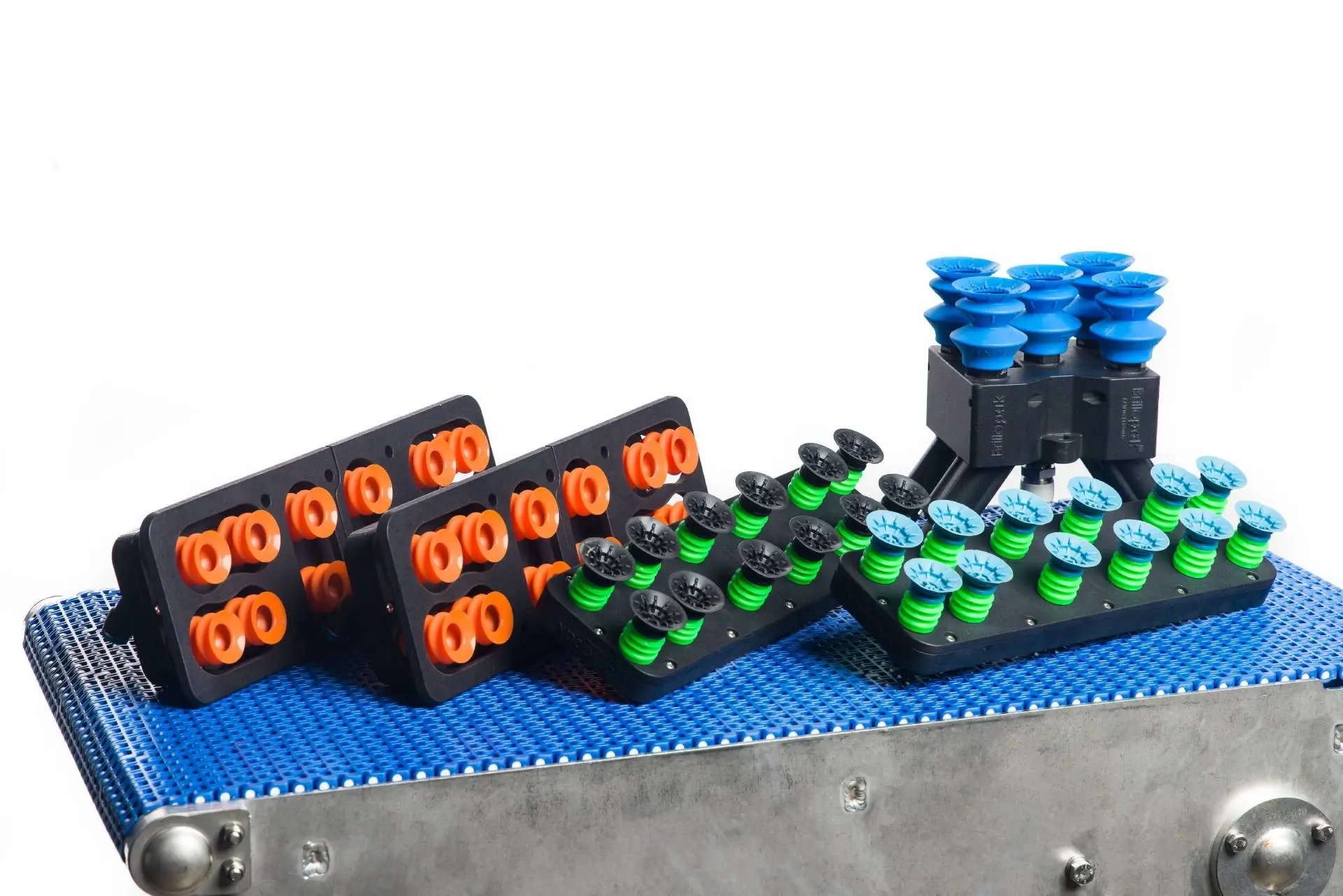

With our experience, we considered how end of line solutions could be made more efficient and identified that reducing tooling changeover would be beneficial. We then invested resources in research and development to design and manufacture our own heads and end effectors. Our most recent designs mean that we can be more inventive with product recipes, where we can alter elements such as clamping forces and gripping techniques, rather than changing components.

PAK QC is our Quality Assurance system for packed products.

Designed specifically for quality assurance testing of a product pack by checking critical characteristics of pre-packed food products.

Originally developed for QA of apple packs, prior to automated packing into crates, the system identifies the number of products in a pack and whether or not the pack has been cut in the packing process. The system also pushes any ghost bags from the line, to ensure trouble free automated packing of correct product into the crate.

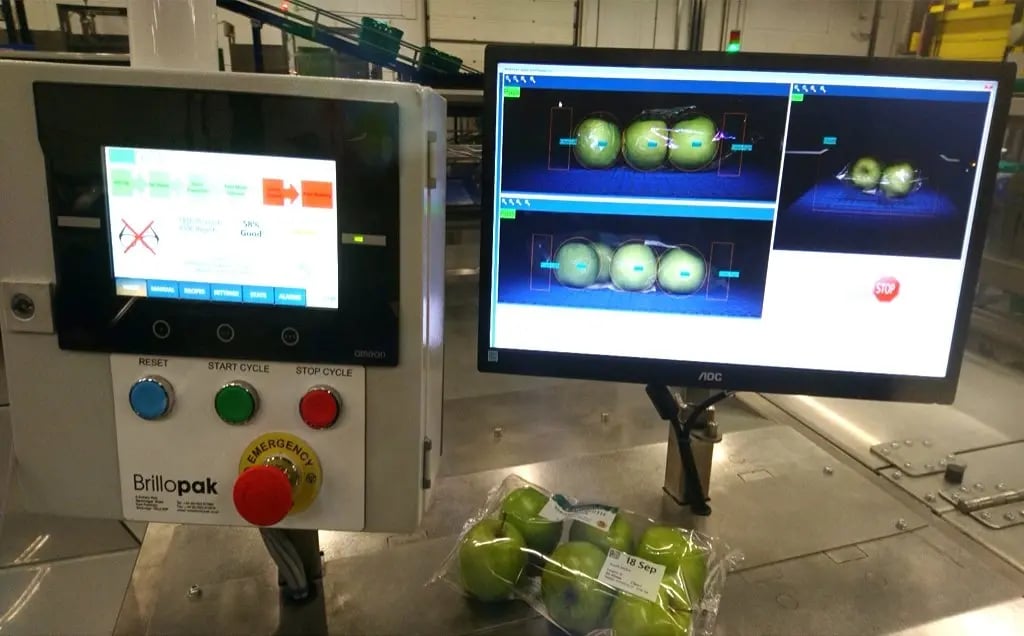

Uses CIVS software and 3 cameras with specialist lighting in order to identify critical data through partially clear flow wrap bags.

Yield is a key measure of production. So how did we ensure that delicate apples did not get damaged in the reject process. Simple, we employed an electronic apple to record multiple measurements per second, of all of the bumps along to process and then checked for bruises. Once we understood the readings, we were able to set a proven path that eliminated bruising .

Integrated Vacuum Heads for packing into crates and trays.

A new range of patent pending vacuum based end effectors designed specifically for flexibility of motion and consistency of performance.

Over time we have developed our vacuum capability to handle a wide variety of traditionally difficult products.

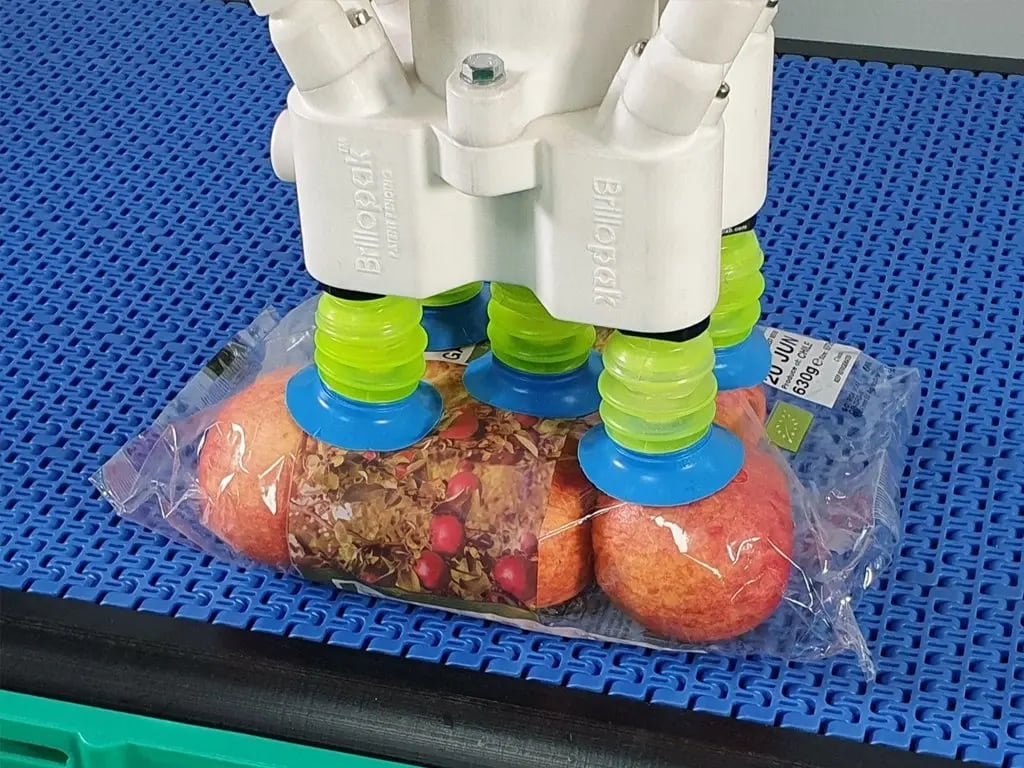

By integrating complex airways in a compact 3D printed head, supported by multiple vacuum cups, each with its own vacuum generator, we are able to create lightweight high speed end effectors capable of handling a multiplicity of products with consistency and accuracy of pick.

Motion control is directing the angle of approach and movement of a robot end effector throughout its cycle, to maximise efficiency and accuracy of performance.

The video shows 3 ways in which Brillopak has recently deployed motion control for 3 different skus in the same project.

Packing into boxes with flaps with no need to control the flap
Packing tight fit bottles into a box with an extra nudge
Placing a layer card between 2 layers of 3 bottles

These applications run continuously every day.

Durability of Operation

Built to operate 24 hours, 7 days a week, 365 days a year.

Control, accuracyand speed

To maintain high consistent line speed and minimise short line stops.

Versatility

To handle multiple product SKUs

Safety

So that everyone is comfortable in its use.
